Beckhoff EK1122 rev 0018
€35.00
Available, delivery time: 2-5 days
Condition: used
Stock: 2
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Beckhoff EK1122 rev 0018"

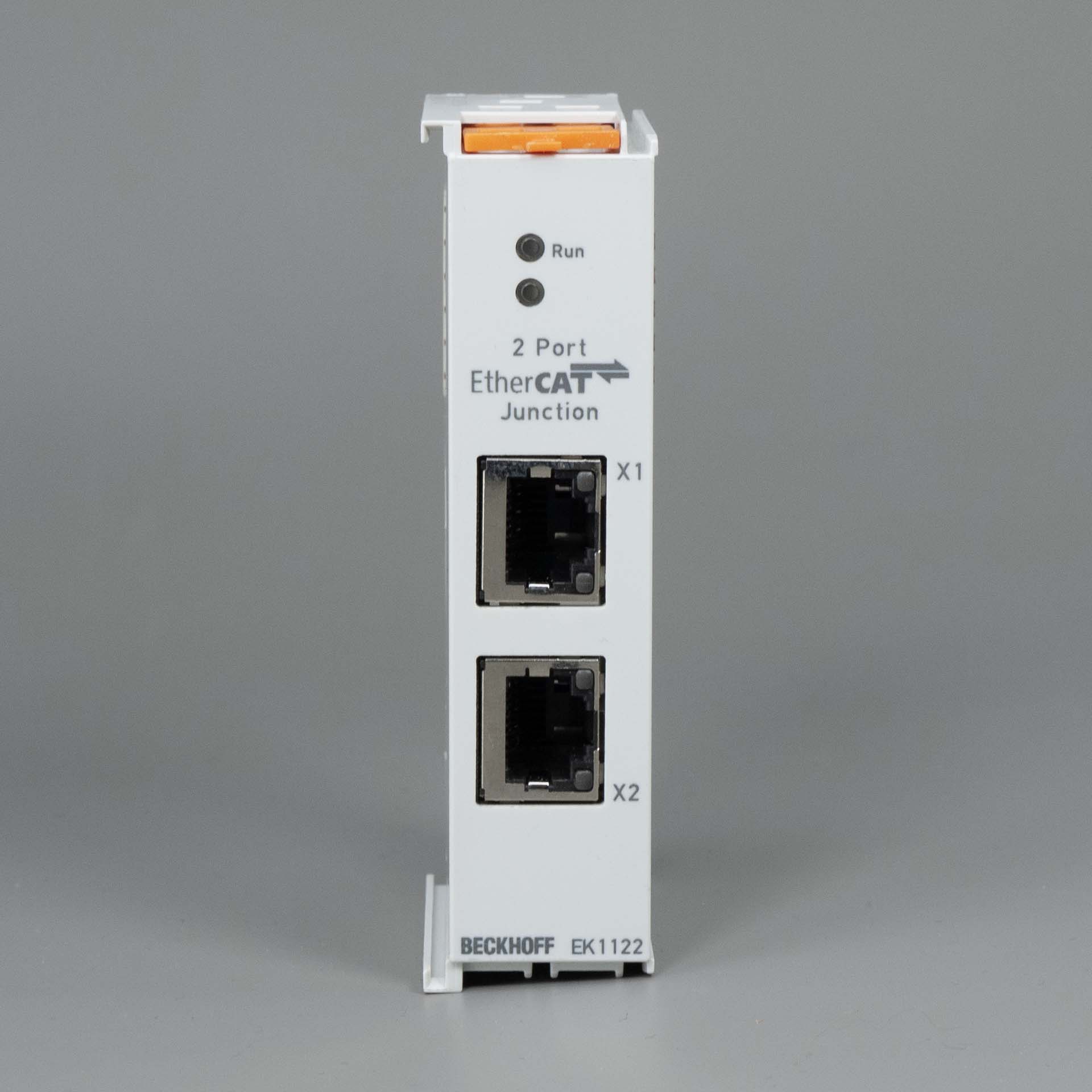

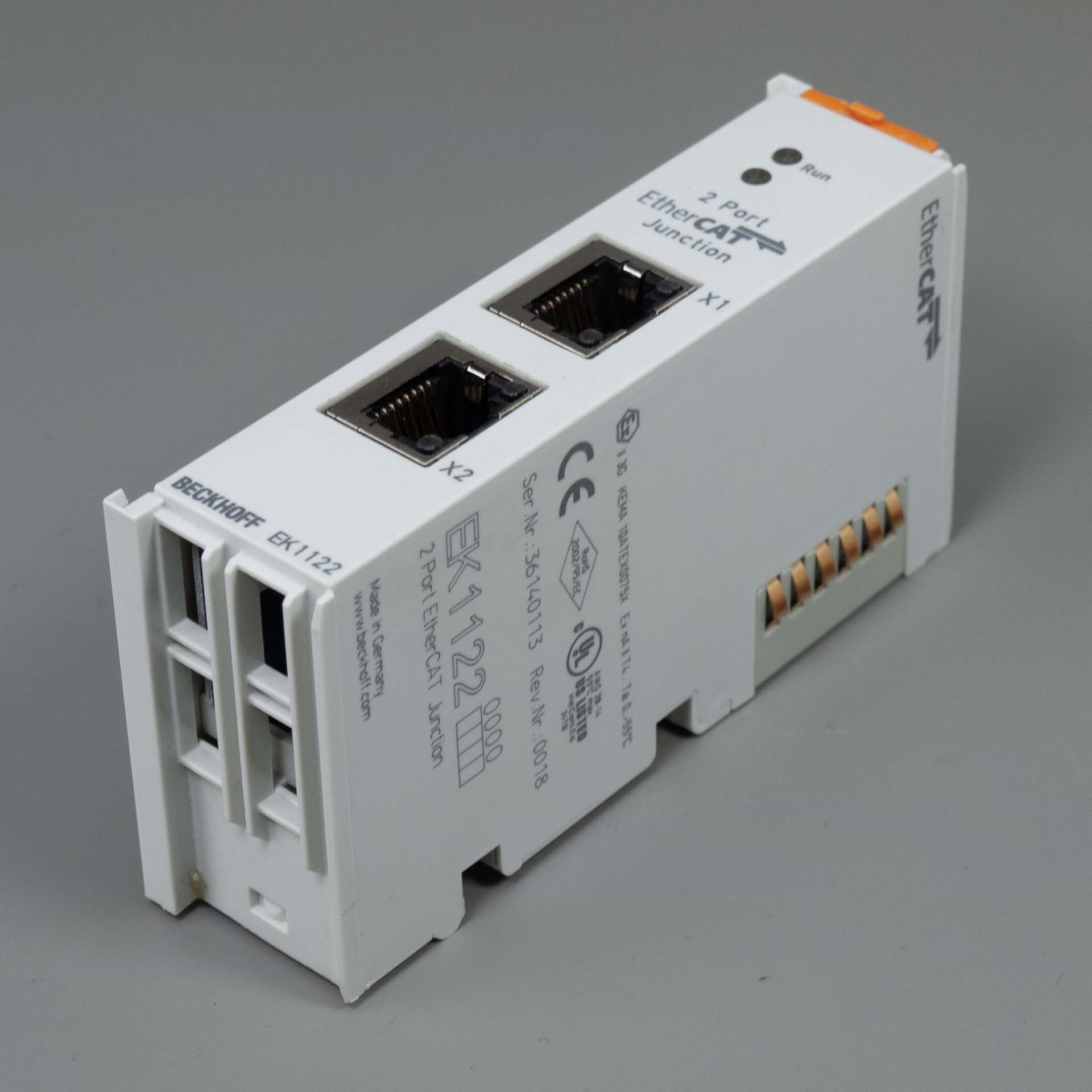

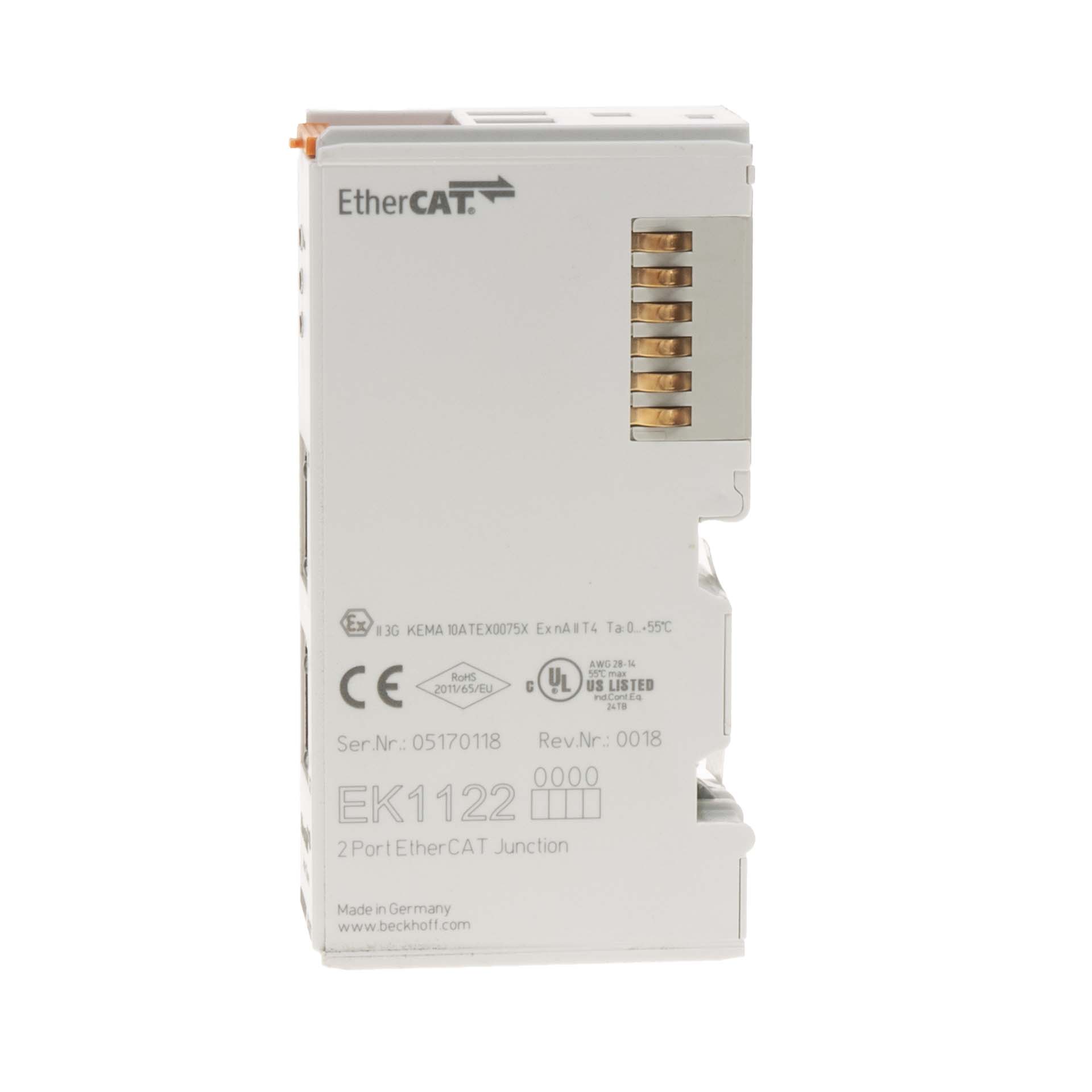

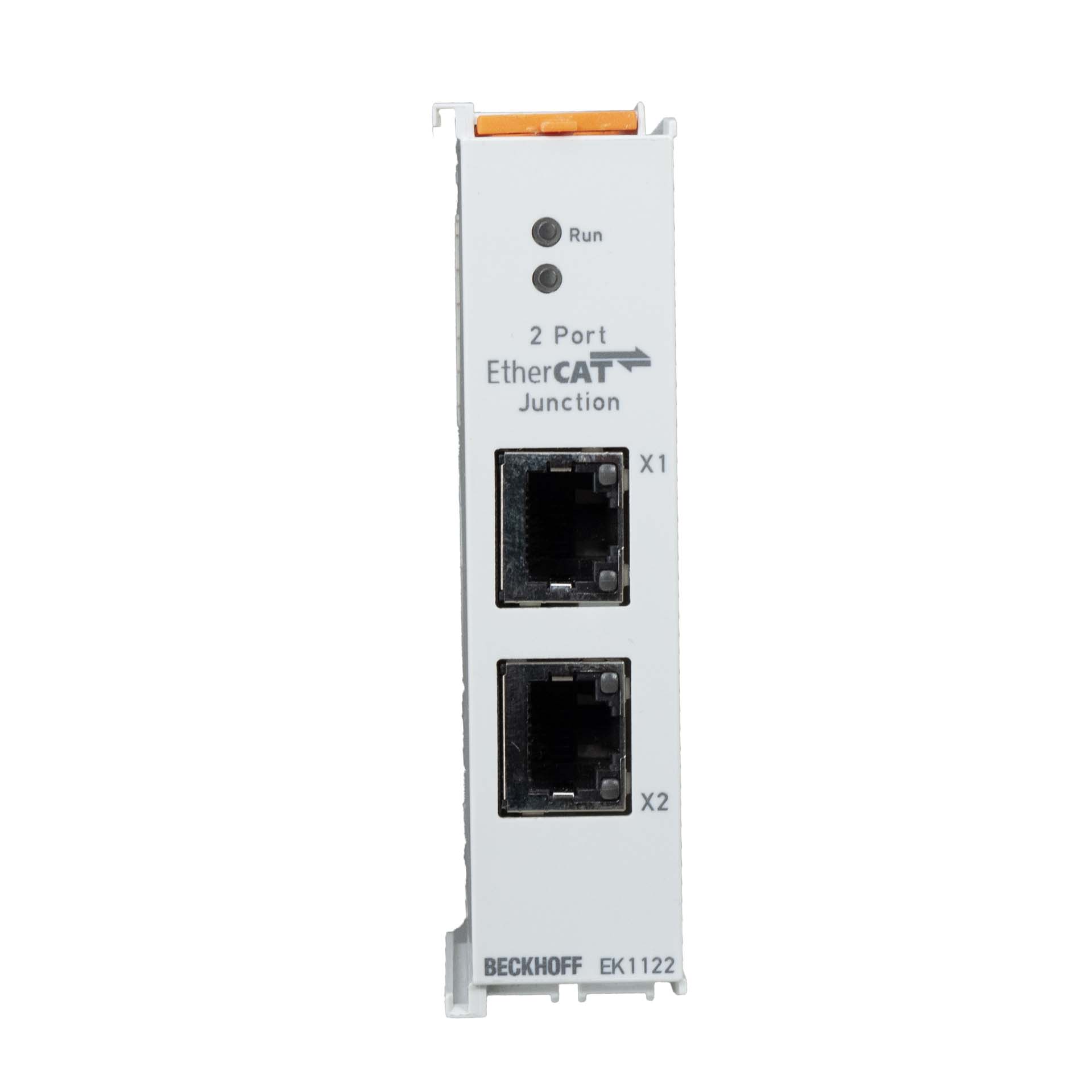

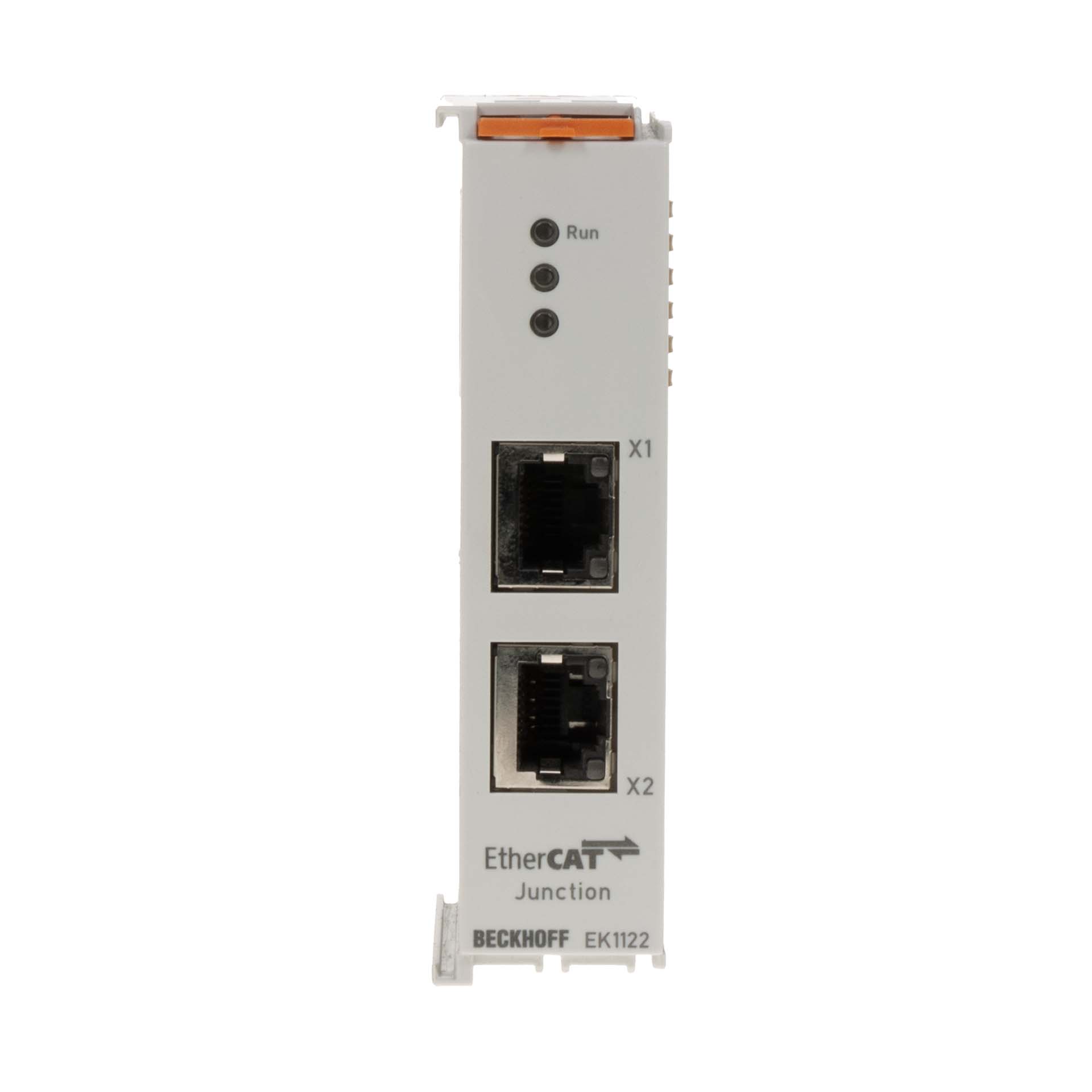

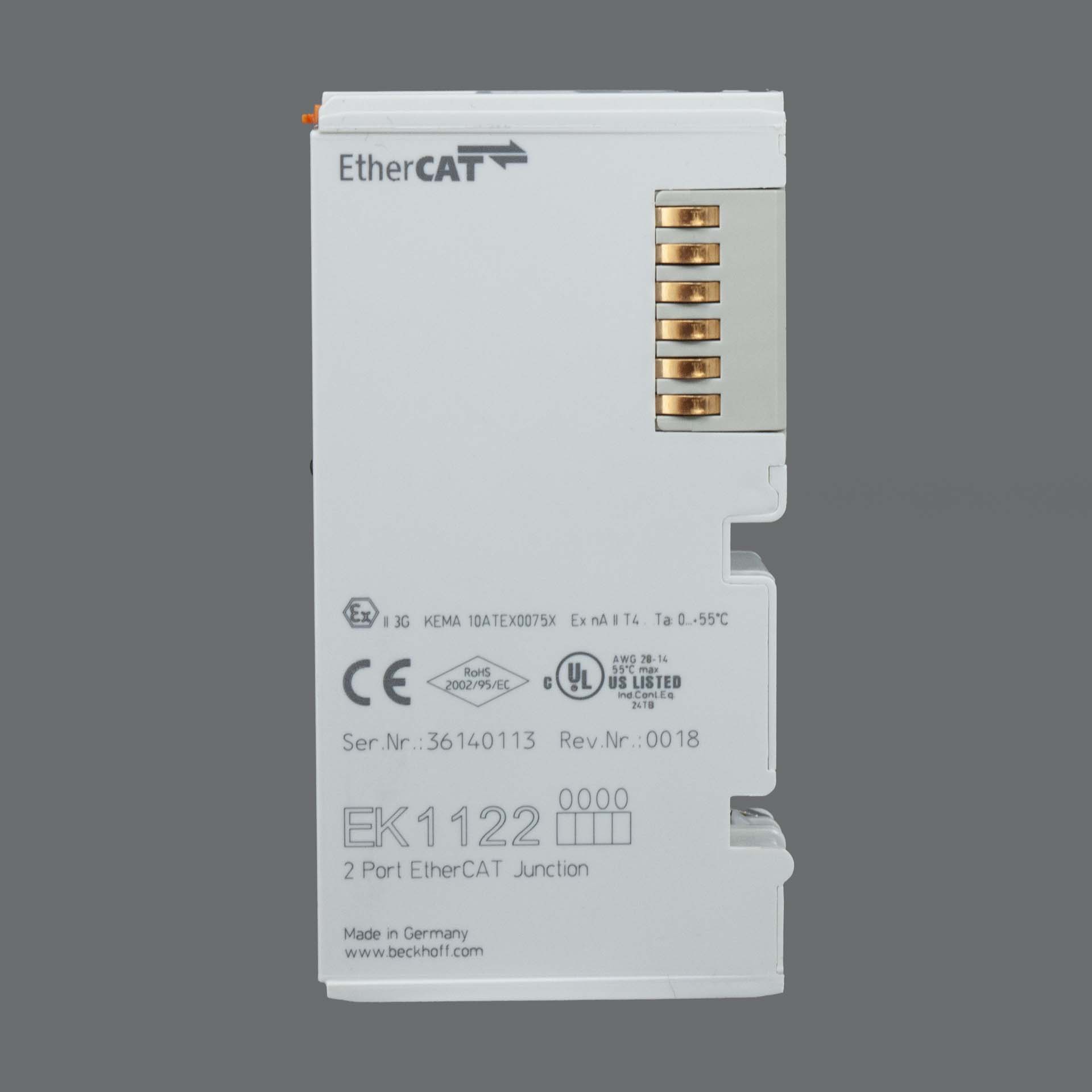

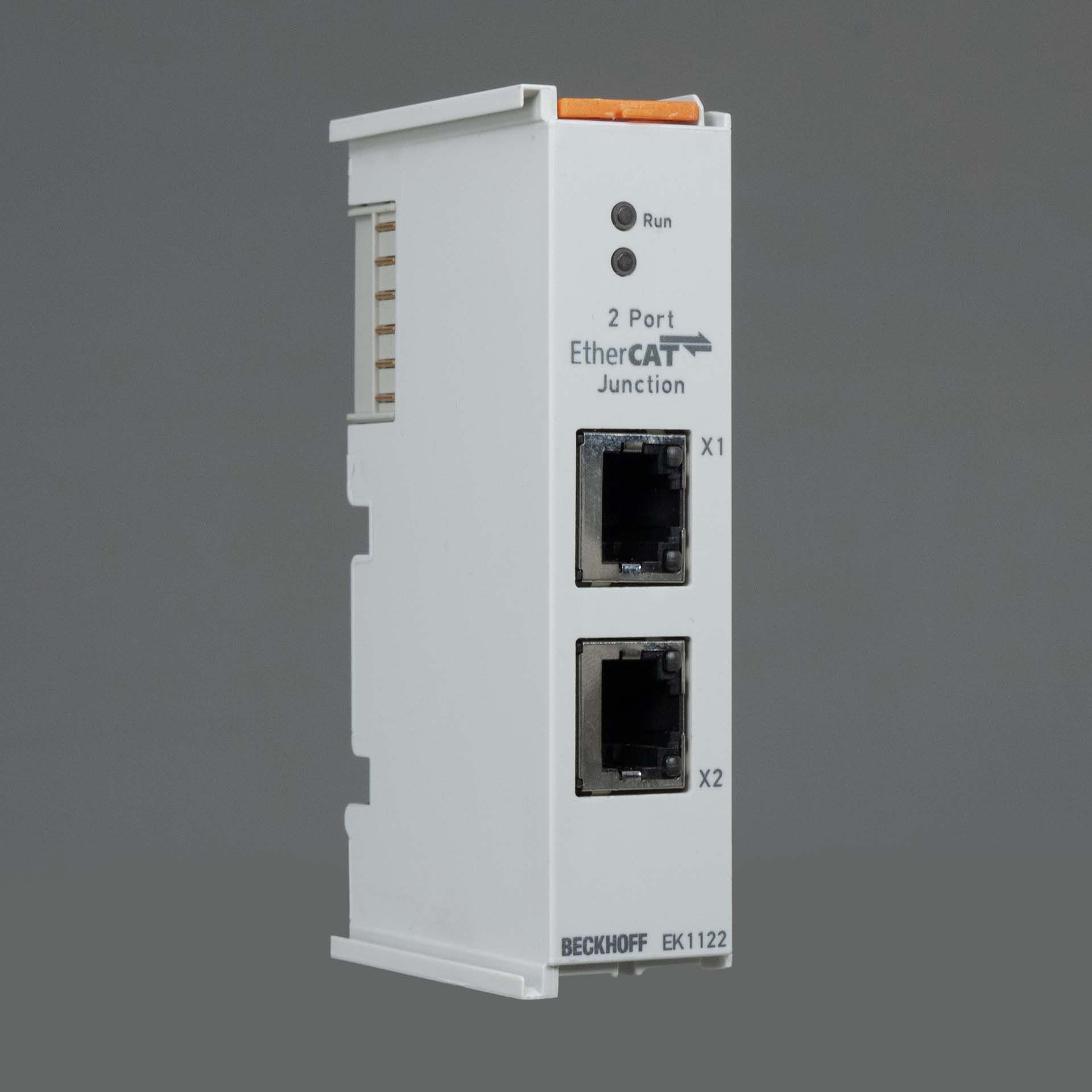

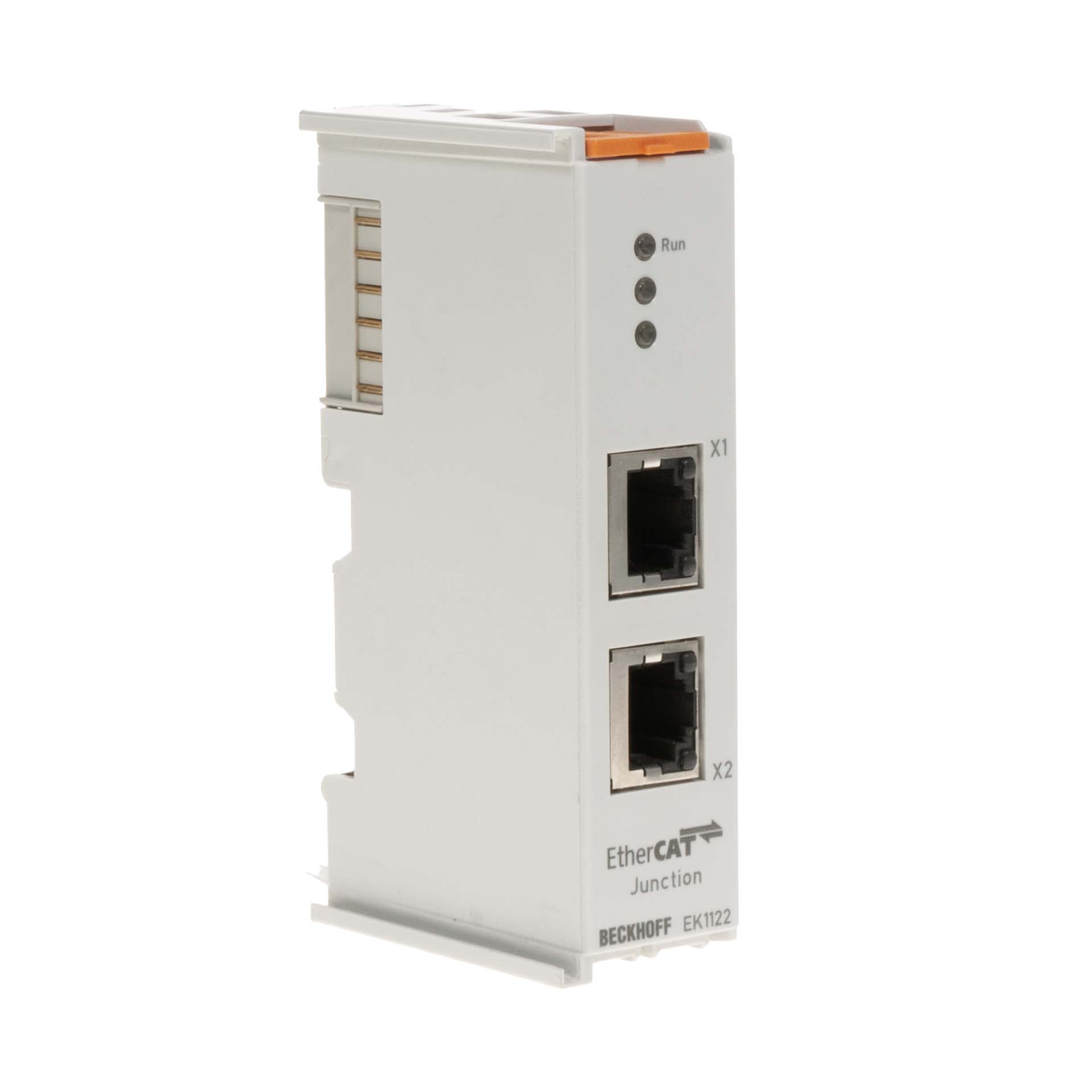

Beckhoff EK1122 rev 0018 2 port EtherCAT junction
The EK1122 2-port EtherCAT junction can be used in an EtherCAT Terminal segment at any desired position between the EtherCAT Terminals and enables configuration of EtherCAT star topologies. A modular EtherCAT star hub can be realized by using several EK1122 units in a station.
Special features:
- Connection technology: 2 x RJ45 sockets
- Connection lengths: up to 100 m
- Can be used for configuring an EtherCAT star topology
The EK1122 has two RJ45 sockets, which enable connection of an Ethernet cable with RJ45 connector and establish a connection to a further EtherCAT segment or to individual EtherCAT devices. The EK1122 supports coupling and uncoupling of EtherCAT segments during operation (Hot Connect).
| Condition: | Used |
|---|
